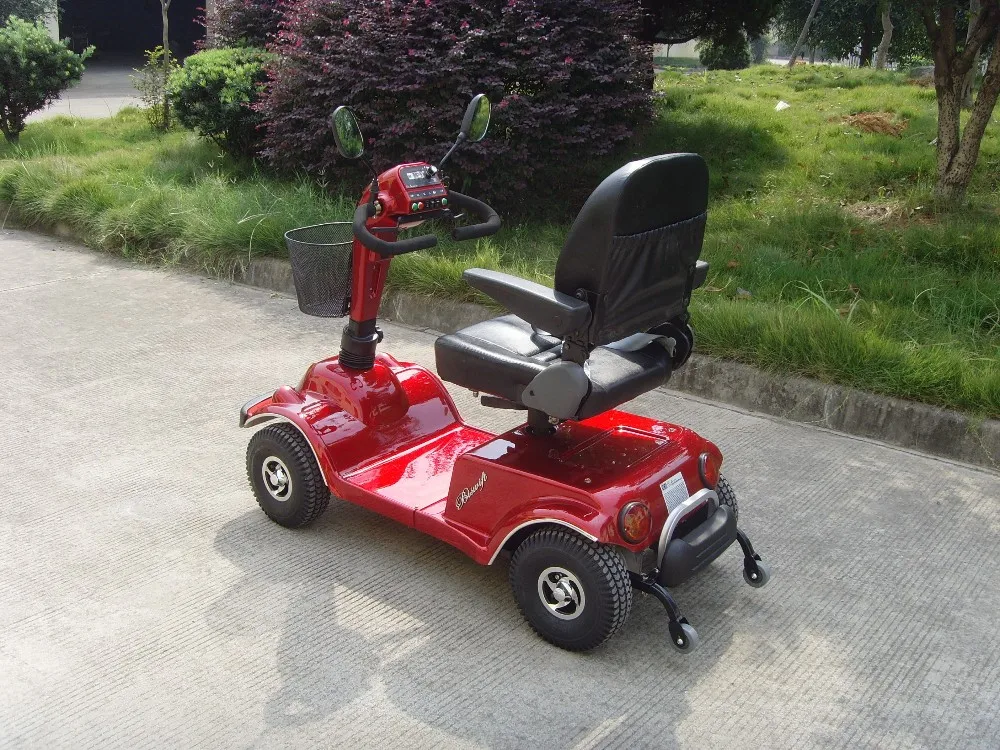

400W Single seat with safety belt electric mobility scooter for adults
Features:
2.Comfortable Deluxe Captain's style seat.
3. 330lbs user weight capacity. Sturdy and stylish steel tubing.
4.Dual-direction rotation seat. Quick release tiller angle adjustment.
5.Height & width adjustable flip-up armrests.
6.Adjustable headrest height. Comes standard with anti tippers.
7.Offers good performance on indoor and smooth outdoor surfaces.
8.Rear-wheel drive and compact size provide optimum maneuverability and accessibility.
|
Product name
|
QX-04-02A
|
|
Weight capacity
|
150kgs
|
|
Battery
|
12V/38AH x 2PCS (Lead-acid maintenance free battery)
|
|
Charger
|
AC100-240V50/60HZ 2A OUTPUT:24V-4A
|
|
Controller
|
PG s-drive 70A or 90A (option)
|
|
Motor
|
24V/400W
|
|
Gearbox
|
19.75:1 (Transaxle with electromagnetic brake)
|
|
Total weight
|
Gross weight: 105kg/231.48lbs
Net weight (with batteries):96kg/211.64lbs
|
|
Overall dimension:
(L×W×H) |
1410x625x1220mm/55.51x24.61x48.03”
|
|
Body frame dimension:
(L×W×H)
|
1355x670x665mm/53.35x26.38x26.18”
|
|
Seat carton dimension:
(L×W×H)
|
625x475x475mm/24.61x18.70x18.70”
|
|
Seat carton dimension:
(L×W×H) |
450x425x520mm/17.71x16.73x20.47”
|
|
Package
|
1pc/ctn, 5 layers carton, iron frame crate.
|
|
Front tires
|
Black (Grey) pneumatic tire 12” 4.00-4
|
|
Rear tires
|
Black (Grey) pneumatic tire 12” 4.00-4
|
|
Anti-tip wheel
|
75mm x 25mm/3 x 1"
|
|
Incline capability
|
15 degrees
|
|
Turning radius(min)
|
1300mm /51.18”
|
|
Max climb grade
|
12°±1°
|
|
Range
|
35-45km (Max range:45km per full charged)
|
|
Recharge time
|
6-8hours
|
|
Seat
|
Removable, eight azimuth rotation, sliding back and forth, backrest foldable, seat belt
|
|
Seat height from ground
|
630-680mm
|
|
Front wheels center width
|
490mm
|
|
Rear wheel center width
|
570mm
|
|
Front and rear center distance
|
915mm
|
|
Forward speed
|
6-12km/h (adjustable)
|
|
Backward speed
|
4-8km/h (adjustable)
|
|
Quantity in Container
|
20”GP--32PCS, 40”GP--58PCS, 40”HQ----58PCS
|
Packaging & Shipping:
Outer Packing:1set/ctn
Every product is strongly packed by Honeycomb carton box with foam inside+Cane+Iron frame...
Package:
Carton with the cane and Iron frame
Company information:
WELCOME TO VEHICLE INDUSTRY CO.,LTD
developed first mobility scooter and golf carts in 2009 and since then we export our products to all over the world. Fulong products have been perfected throught 8 years of experience and customers feedback.
Our yearly trunover is USD1800000, 40% from Euro, 20% from UK, 20%from Australia and New Zealand, 20%from Canada and Singapore.
Our mobility scooter and golf carts are with CE, ISO 9001:2000 certificate.
We provide 12 months warranty for our overall Mobility scooter & Golf carts
Our 15000 Square meter plant makes it is possible that deliver a 40’ container in 2 weeks.
We are here waiting for you, and wish to establish long business relationship with you.
Our products have approved ISO9001:2000, CE certificates.
FAQ (Frequently asked question):
1. Warranty:
The frame is 3 years, battery, motor with transaxle/electromagnetic brake, controller, other parts all is one year.
2. Delivery method:
Sea freight, EMS, TNT, DHL, FEDEX and other own ways.
3. Our best price:
Depend on your order quantity.
4. Payment method:
T/T, L/C, Western Union, Pay by Credit Card, Money Gram, Alibaba Trade Assurance.
OEM services:
(1) put logo on the products.
(2) printing logo on the carton box ,if color box ,each item MOQ is 500pcs
(3) we can change the accessories according to customer’s request .
After-sale Service:
1. One year warranty under normal use.
2. If the quality problem, please contact us within 24 hours after received of the goods,
We'll solve it immediately.
3. Under special circumstances, we'll re-send the spare parts or new products to the customers.
4. Keep the best service in the business, we'll get more cooperation with you.
We care from every detail and keep close contact with customers for the process.
Our goal is to make customers happy and proud of us!
Outer Packing:1set/ctn
Every product is strongly packed by Honeycomb carton box or with foam inside+Cane+Iron frame...
